gt Geotextile Anchors

Product Code: gtgeoanchors-Pro
In Stock

The range of geotextile anchors developed to accompany our comprehensive range of erosion control and ground stabilisation products. The anchors are ideal for areas subject to over-steepening or where poor drainage and lack of deep rooted vegetation have caused instability.

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

Union Jack Icon
Made In The UK

The range of geotextile anchors developed to accompany our comprehensive range of erosion control and ground stabilisation products. The anchors are ideal for areas subject to over-steepening or where poor drainage and lack of deep rooted vegetation have caused instability.

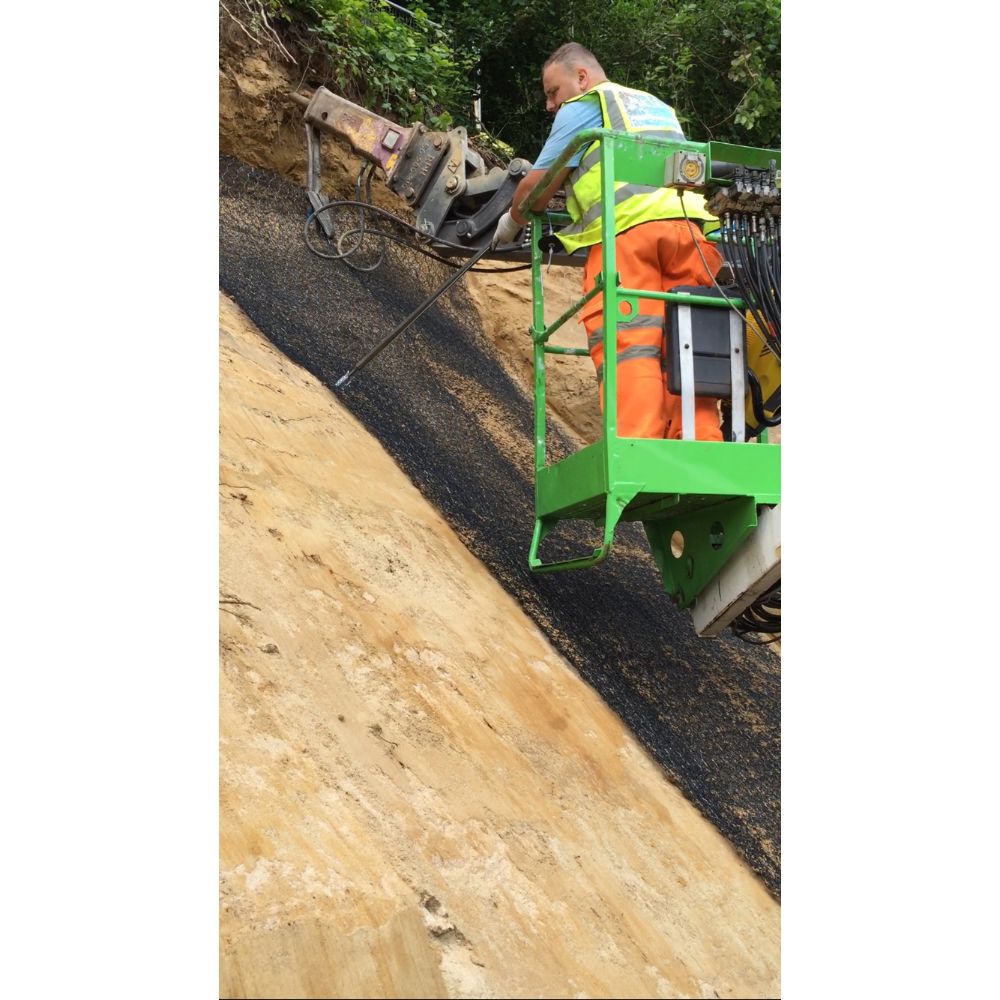

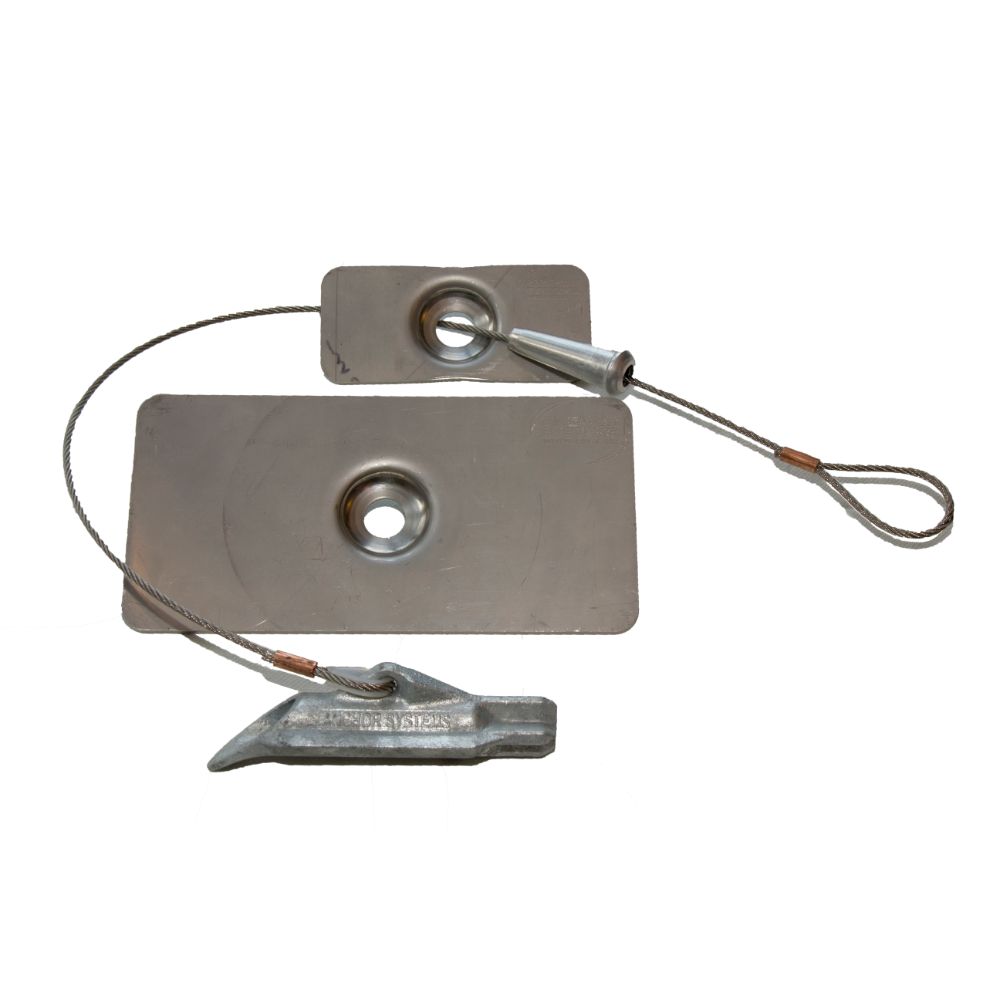

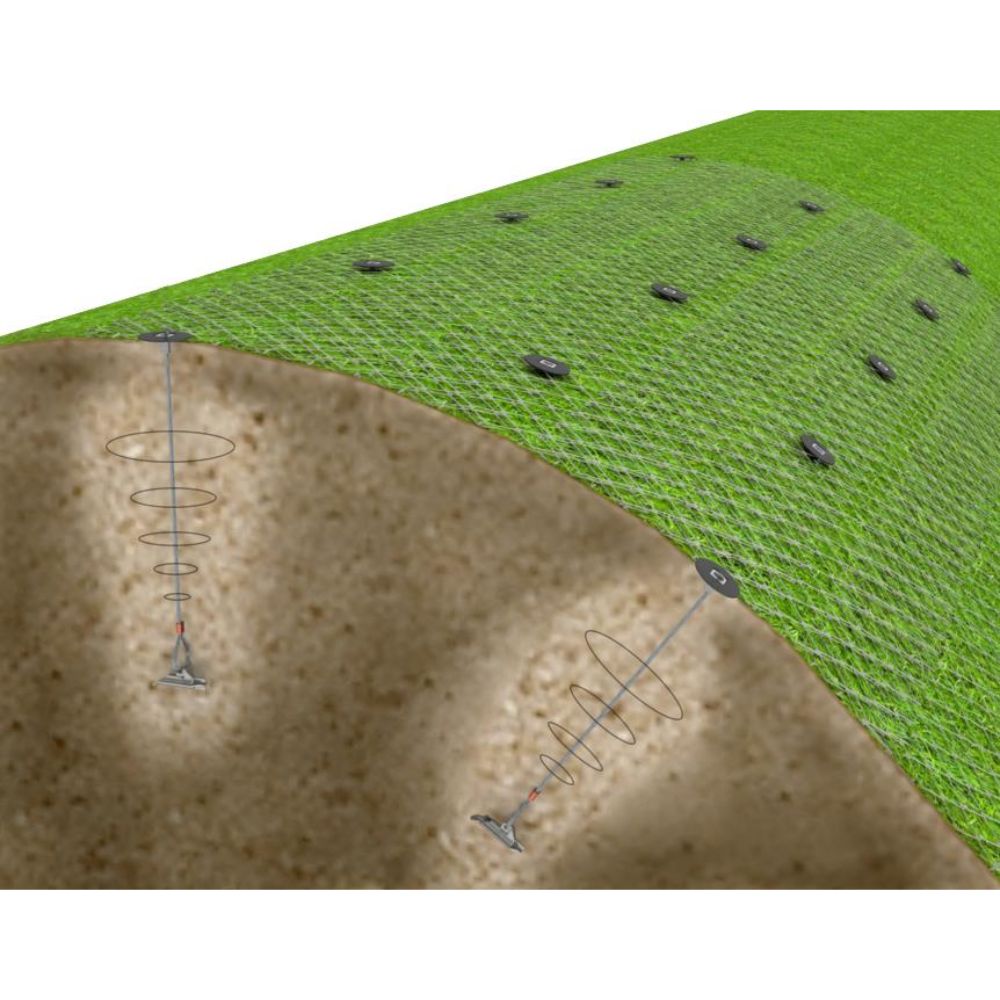

Manufactured from the same high quality materials as the Green-tech range of tree anchoring systems, the geotextile anchors will withstand installation in even the harshest environments. The geotextile anchor system combines a galvanised anchor with a specialist plate detail designed for the Textile together with a termination grip. As the anchor is tightened the plate secures the geotextile in place. The specialist plates offers a larger surface area for improved load capacity, the plates can be manufactured to a shape and size to suit your project. The system is simple to install and designed for speed-saving overall time on site.

gt Geotextile Anchors Applications

  • Slope stabilisation
  • Erosion control
  • Soil retention
  • Landslip prevention
  • Cliff face stabilisation
  • Stabilisation of riverbanks and cliff edges

gt Geotextile Anchors Install with

  • Geocells
  • Coir matting
  • Geo-membranes
  • Structural geo-meshing
  • Nettings
  • Landfill membranes

Anchor Size Available

Capacity

Drive Depth

GTGEO 01

1 - 2 kN

0.3m

GTGEO 05

2 - 5 kN

1.2m

GTGEO 10

4 - 10 kN

1.2m

GTGEO 20

10 - 20 kN

1.5m

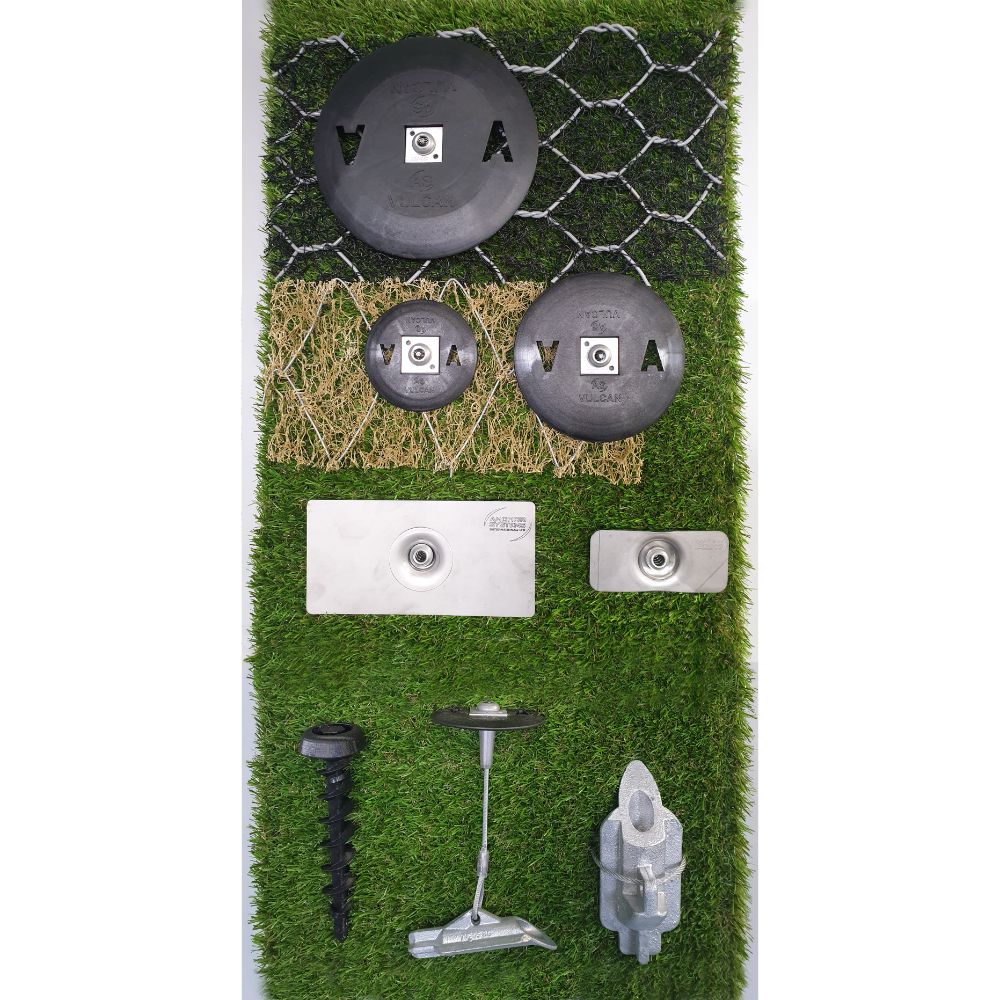

The above anchors can be secured with the recommended termination plates below:


Textile

Termination plate

Coir

100/150/300 GT Geo-plate

Geocell

Anchor finished with soft eye toaccommodate 60.3 galvanised tube.

Structural Mesh

100/150/300 GT Geo-plate

Nettings

100/150/300 GT Geo-plate

Landfill Membrane

300 OD Paracord CC Nylon

Reno Mattress

Stainless steel GT Revetment plate (Size 1/2)
