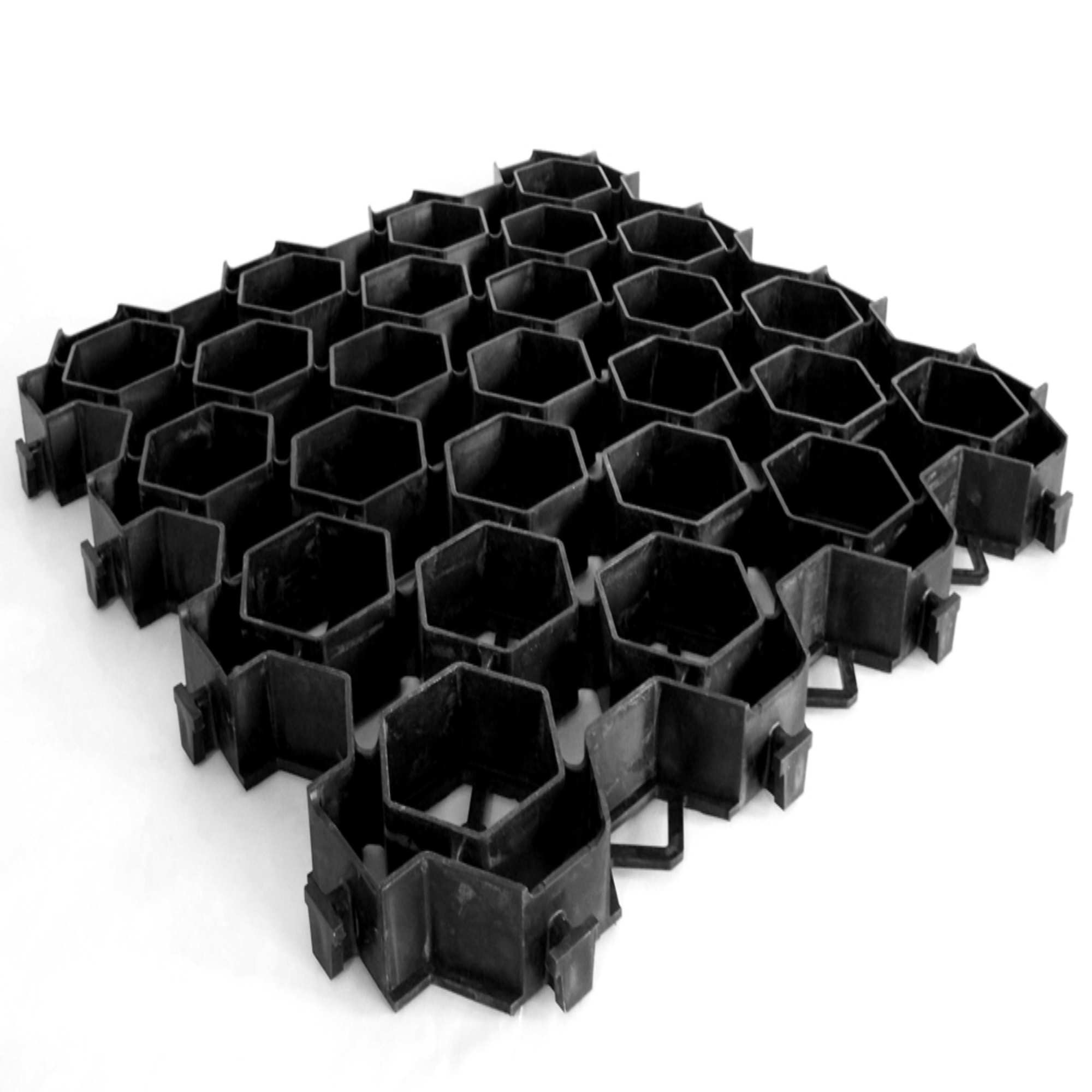

GRB Plus - Plastic Ground Reinforcement Paver

Product Code: 150WW4540-pro

GRB is a tried and tested solution for ground protection, ground reinforcement and stabilisation paver system, GRB Plus is a plastic paver systems that has been specified on many major projects across the UK. It provides excellent strength and protection whilst permitting the free-flow of water, minimising drainage problems.

From £13.65
Union Jack Icon
Made In The UK

GRB is a tried and tested solution for ground protection, ground reinforcement and stabilisation paver system, GRB Plus is a plastic paver systems that has been specified on many major projects across the UK. It provides excellent strength and protection whilst permitting the free-flow of water, minimising drainage problems.

Features

  • Manufactured from 100% recycled polymer
  • Manufactured in the UK
  • Supports vehicles up to 250 tonnes
  • Minimal maintenance
  • Unique locking system for a speedy installation
  • Lightweight, easy to assemble
  • No additional fixings or tools required
  • Allows surface water to drain freely

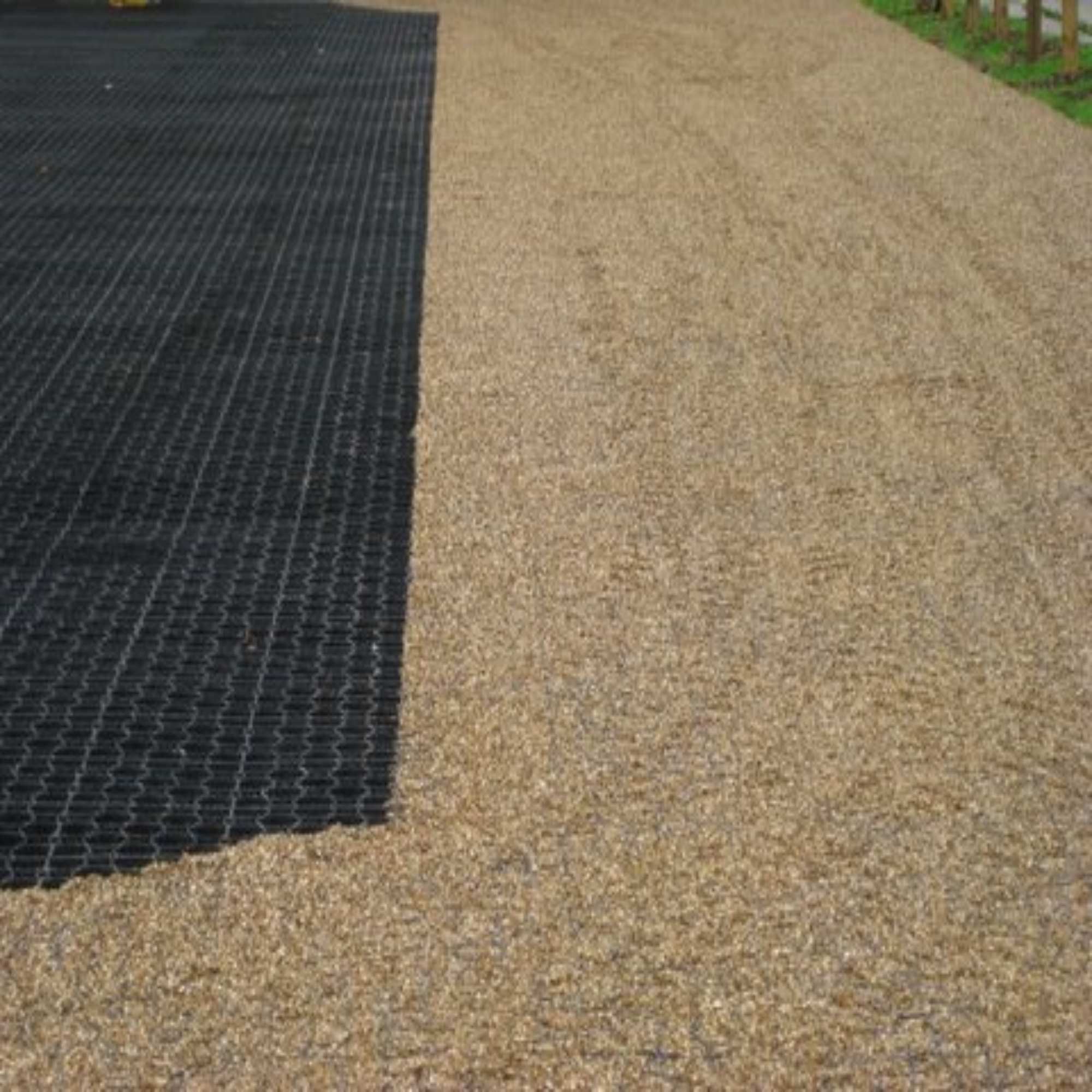

  • Can be finished with grass, gravel and stone

GRB PLUS Plastic Pavers can be used in the following areas:

  • Construction sites
  • Golf courses

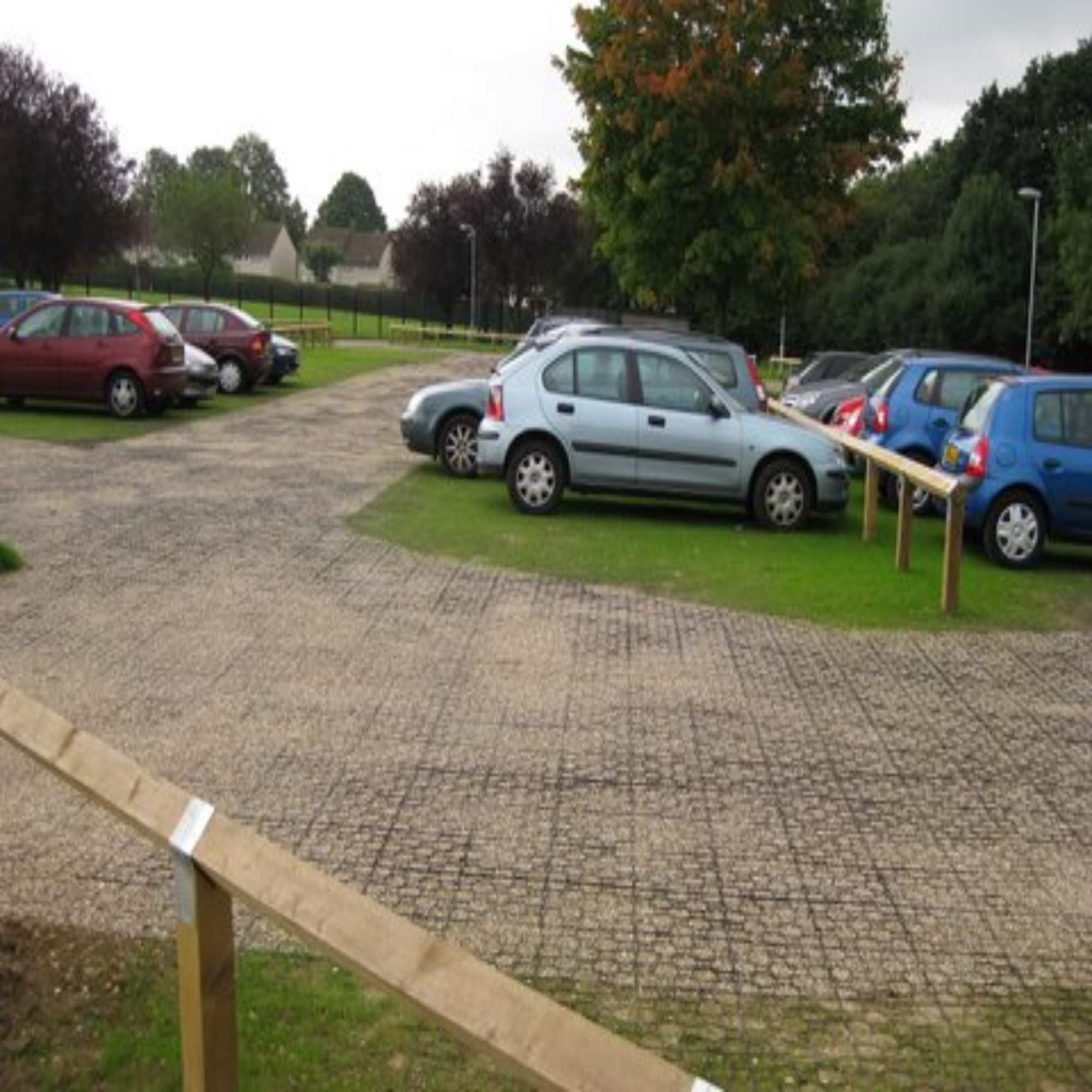

  • Green parking area
  • Landscape projects
  • Access roads
  • Towpaths
  • Private lanes
  • Emergency access routes
  • Paths and driveways
  • Helicopter landing pads
  • GRB Technical Spec

    GRB Technical Spec

    Grid Area

    500 x 500 x 40mm

    Wall Thickness

    4mm

    Wall Depth

    40mm

    Weight/m2

    4.56kg/m2

    4

    Number of units per m2

    Load Capacity

    Up to 250 tonnes/m2

    Axle Weight

    Up to 16 tonnes

    m2 per pallet

    56m2

    Gross Weight per pallet

    260kg

    Material

    HDPE

    Temperature Stability

    -30 to +80°C

    Chemical Resistance

    Rocksalt, ammonia, acid rain,

    petroleum products, hydrocarbons

    Estimated Installation Time

    100m2 per person per hour

    (depending upon ground preparation)

    Base Specifications

    Minimum base recommended: 250mm for car parking, 450mm for heavier vehicles

    Sub base depths

    Project Typical depth:

    • Patios, Garden paths 100mm
    • Driveways, public footpaths 150mm
    • Heavy uses 250mm
    • Highways 450mm +

    GRB Plastic Grid Colours Available

    • Black

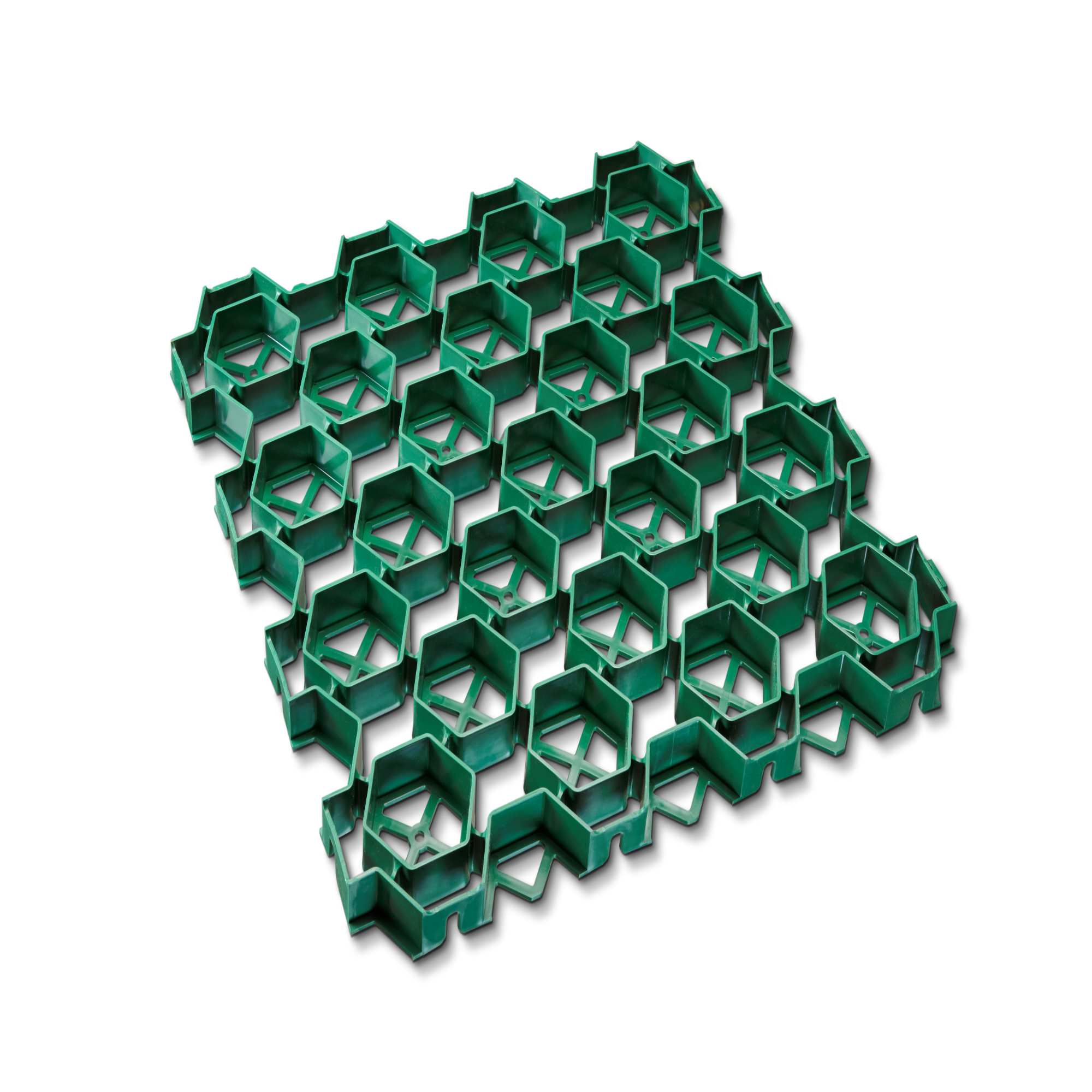

    • Green - On request
    GRB Technical Spec Grid Area 500 x 500 x 40mm Wall Thickness 4mm Wall Depth 40mm Weight/m2 4.56kg/m2 4
