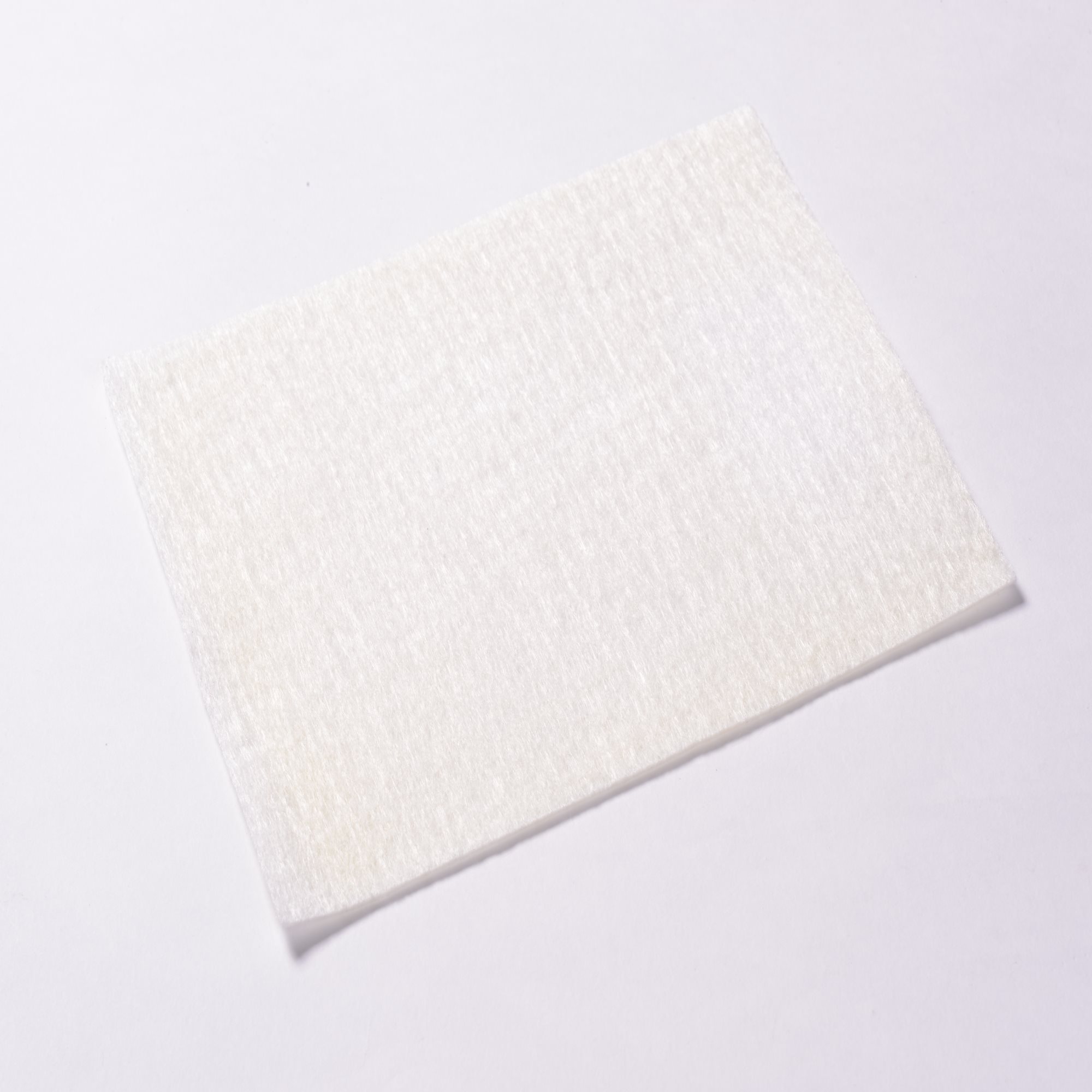

Terram 3000 Geotextile Fabric
Terram 3000 geotextile fabric enhances the performance and design life of granular layers by providing the filtration and separation functions. Typical uses for Terram T3000 geotextiles include ground stabilisation (between the sub-base and subgrade) and around drainage materials.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
Terram 3000 geotextile fabric enhances the performance and design life of granular layers by providing the filtration and separation functions. Typical uses for Terram T3000 geotextiles include ground stabilisation (between the sub-base and subgrade) and around drainage materials.
Preventing intermixing of granular materials and soils
Terram geotextiles provide an effective solution to the problem of constructing a stable granular layer over soft foundation soils. When stone is placed directly on a soft subgrade, the imposed load often causes intermixing of two layers. This results in contamination of the stone layer and a resulting loss in bearing strength, surface rutting and deformation at the sub-base/subgrade interface.
Preventing the ingress of fines into drainage media
Whether it's a granular drain or a geosynthetic alternative such as open geocellular units, Terram standard geotextiles are ideal for preventing the ingress of fines.
Terram filters/separators are used extensively in the construction of:
- Paved and unpaved roads
- Railways
- Car parks and hardstandings
- Cycleways and footpaths
- SuDS installations
- Green roofs
Terram 3000 Specification
Product Grade |
T3000 |
Roll Width* (m) |
4.5 |
Roll Length (m) |
100 |
Roll Weight (kg) |
120 |
